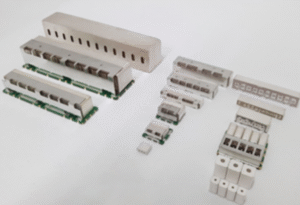

The Ceramic Filter of DwaveTech can be manufactured in various forms according to customer’s specification. Our products are designed from 50MHz to 6GHz in high frequency range, it has excellent quality characteristics. It can provide very stable filter at high temperature with low insertion loss. So, we can meet customers’ needs with the lowest cost, fast delivery, and superior quality characteristics. Therefore, our products can provide the best products for your system with the best performance.
✅ Performance:
Monoblock and Discrete type
Low Insertion Loss, Excellent Attenuation
High Quality “Q”
Customized Design and Pin to Pin avaliables
ROHS Compliant
📦 Types of Ceramic Filters:
🔹 RF Ceramic Low Pass Filter (LPF)
Blocks high-frequency signals while allowing lower frequencies to pass. Ideal for harmonic suppression and EMI reduction in compact RF systems.
🔹 RF Ceramic High Pass Filter (HPF)
Allows high-frequency signals to pass while attenuating lower frequencies. Commonly used for blocking interference and low-frequency noise.
🔹 RF Ceramic Band Pass Filter (BPF)
Passes only a specific frequency band and attenuates signals outside that range. Used for channel selection in wireless receivers and transmitters.
🔹 RF Ceramic Duplexer
Combines two filters (typically a transmit and receive bandpass) into one component to allow simultaneous transmission and reception on a single antenna. Essential in compact, full-duplex RF systems.
✅ Key Features:
Operating Frequency: Typically 30 MHz – 3 GHz
High Selectivity: Sharp roll-off characteristics with minimal signal leakage
Small Form Factor: Compact, surface-mount or leaded designs
Temperature Stability: Suitable for industrial and telecom-grade applications
Impedance: Usually 50 Ohm
Low Insertion Loss: Typically 1–2 dB depending on the design
Applications: IF filtering, front-end RF filtering, channel selection, EMI suppression
🔧 Advantages:
Excellent size-to-performance ratio
High Q factor and low drift over time
Consistent performance in high-volume manufacturing
Affordable for mass-market RF products
